PT-CR - Cable Railing - Tension Gauge
PT-CR - Cable Railing - Tension Gauge
Couldn't load pickup availability

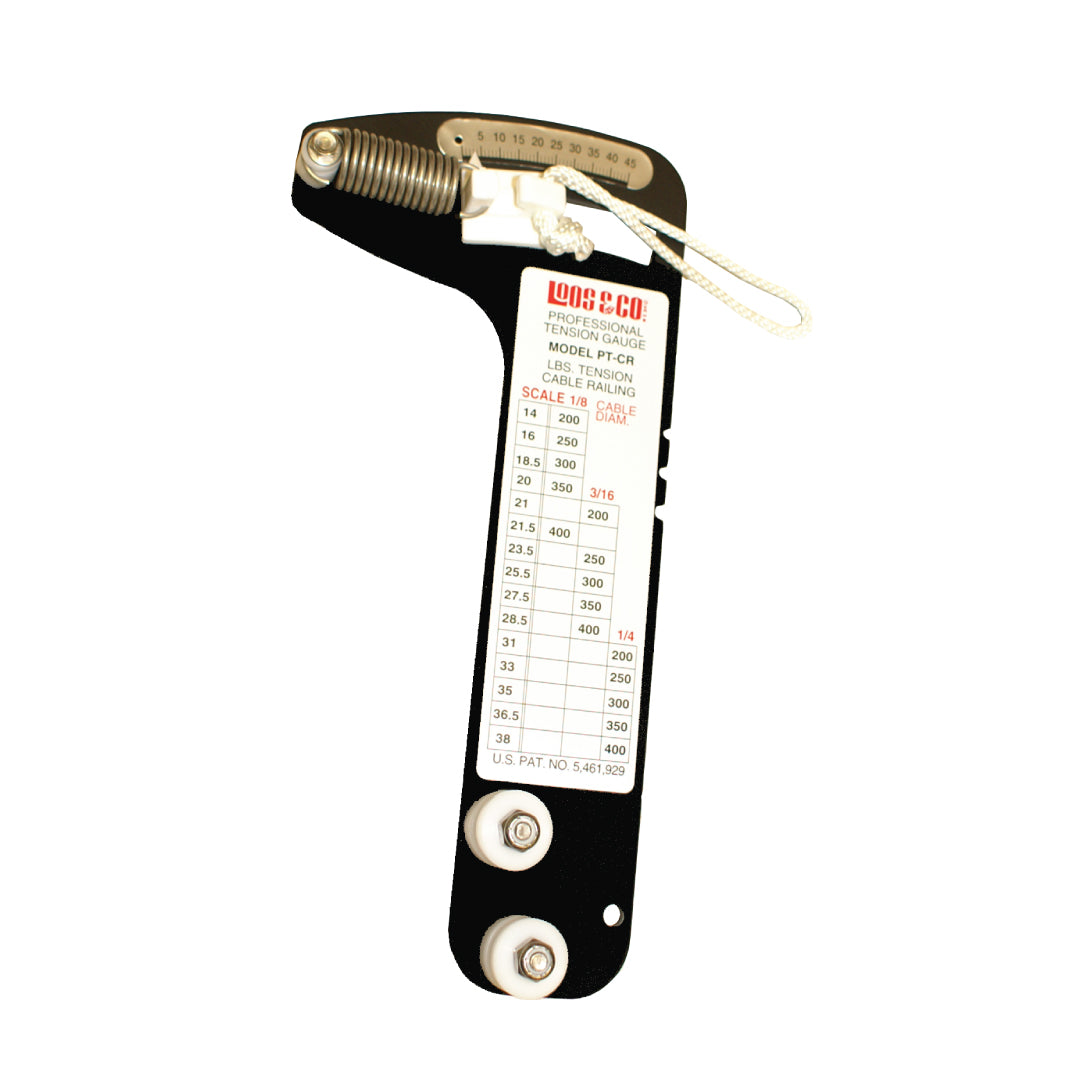

The Loos & Co Professional Model PT-CR tension gauge is designed to provide an accurate measurement of the tension in architectural cable railing systems.
Readings of between 200 and 400 lbs. are shown on the easy-to-read scale.
All readings are based on 302/304 1×19 Stainless Steel breaking strengths.
MADE IN USA: YES
Applicable cable sizes: 1/8”, 3/16”, 1/4" (3.175mm, 4.7625mm, 6.35mm)
| Part Number | Description |
|---|---|
| PT-CR | Cable Sizes 1/8”, 3/16”, 1/4" |

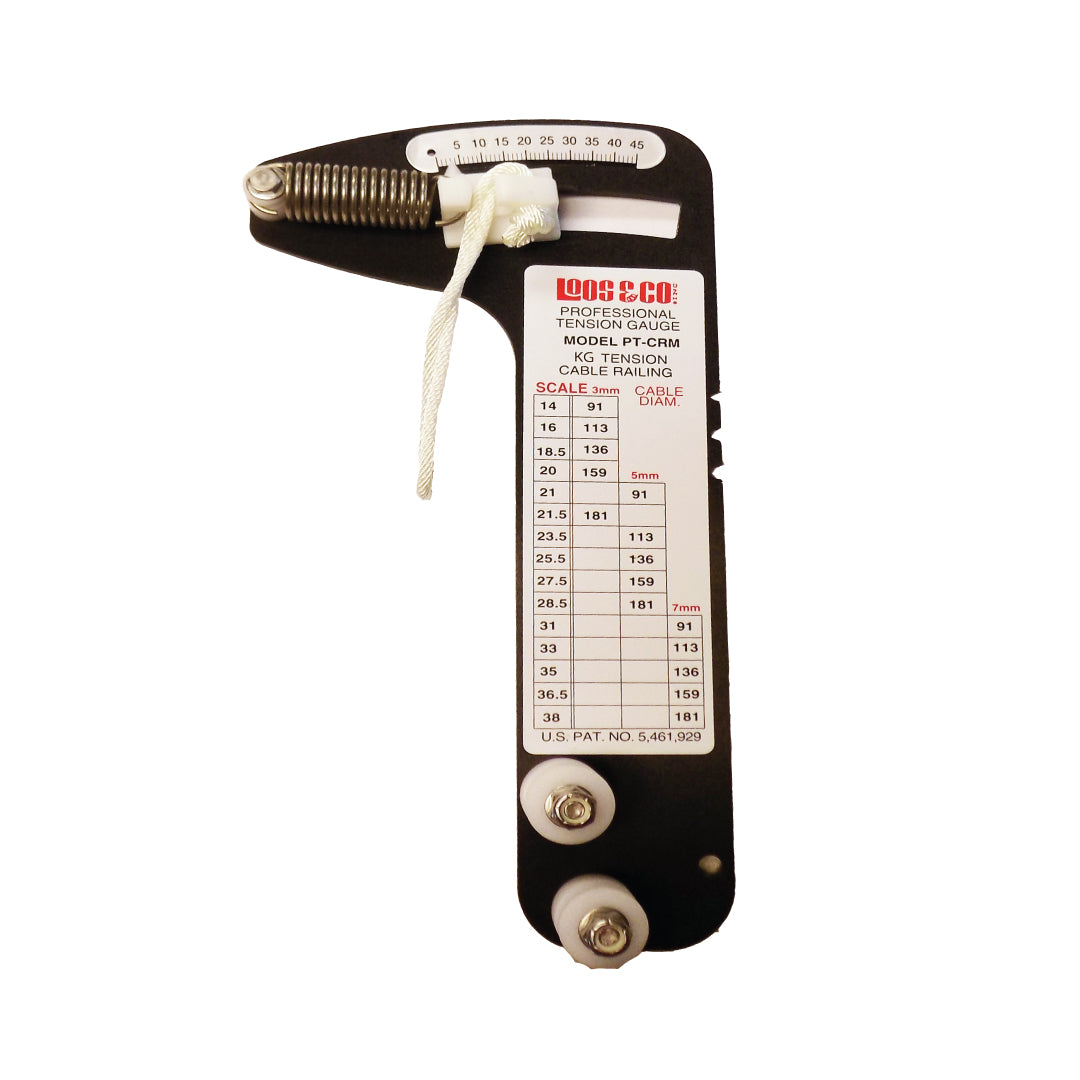

| PT-CRM | Cable Sizes 3.18mm, 4.76mm, 6.35mm |
Note: The intended use of this gauge is to be used on 302/304 1×19 Stainless Steel cable in appropriate sizes. If used on other cable types, sizes and construction your reading would be consistent (repeatable) but pound tension values would differ from those listed on the label.
Share
Benefits
-
Precision Accuracy
Provides accurate results to ensure speed, and wind-catching efficiency are maximized in sailing applications.
-
Highly Durable
Loos Tension Gauges are designed to withstand repeated use, without showing signs of wear and tear.
-
Innovative Design
Manufactured with rugged anodized aluminum, the gauge is corrosion resistant and will provide years of service.
Frequently Asked Questions
What is the difference between the Standard and Professional Models of Tension Gauges?
The standard models are an economic choice which require manual use and can provide an accuracy of + or – 5%.
The professional models provide higher accuracy, increased durability, and convenience of use. The gauge may be hooked on the wire and will remain in position while tension is adjusted.
Why is it necessary to measure Tension in Rigging Lines?
Proper tension ensures both performance and safety in sailing applications. Maximizing speed and catching wind efficiently becomes difficult without the right tension in rigging lines. Rigging that is too loose or too tight also makes a sailboat unsafe while limiting maneuverability.
What Cable Sizes can be measured across Loos’ Tension Gauge lineup?
Our series of gauges can measure the tension in cables and rods from 3/32: to 3/8” in diameter. (2.5mm to 10mm)
